Custom Circuit Board Projects

attiny 44 with usb port

• first try
•
• failed because of small usb wide and bad leveling of the plate of monofab machine.
• i changed the wide of the usb port and leveling the monofab using modela and 3mm bit

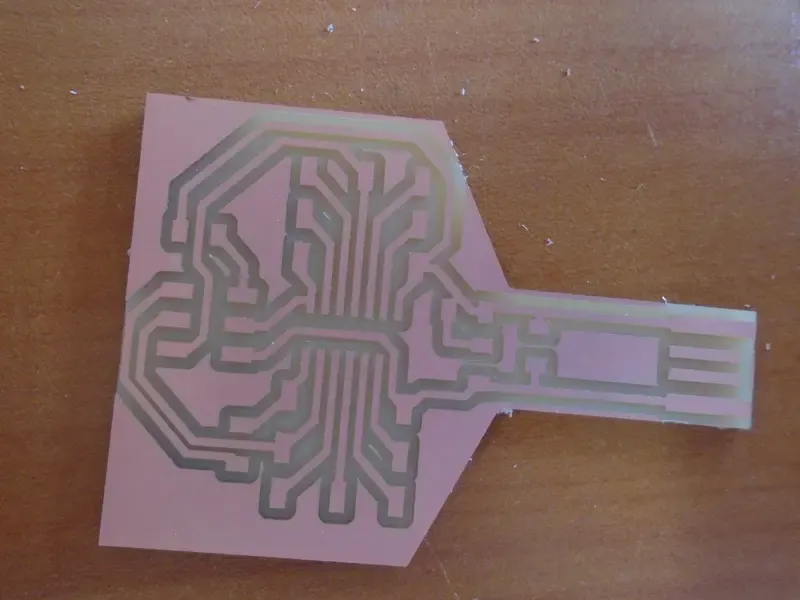

• second try
•

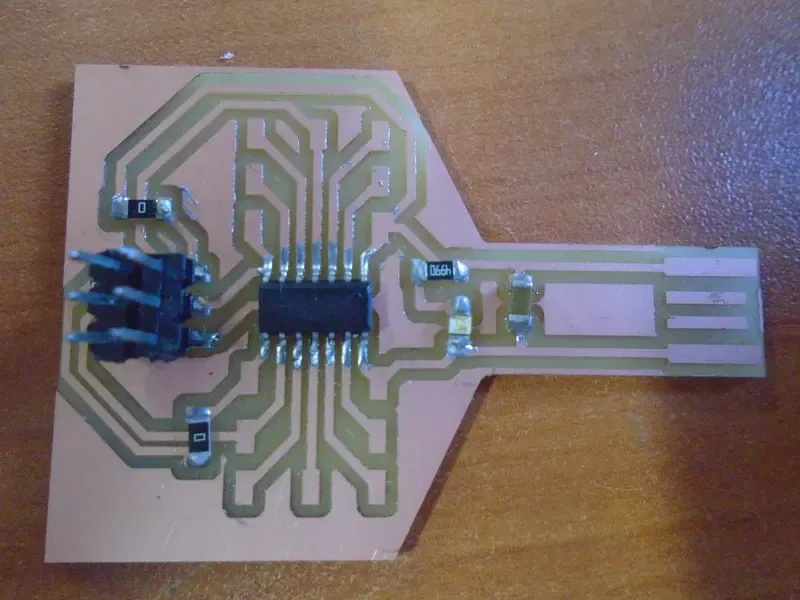

• adding components
•

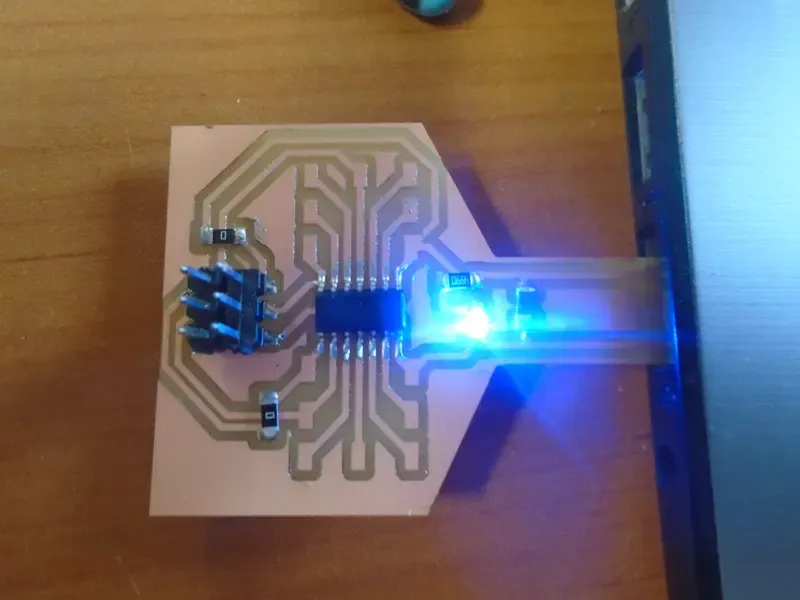

• testing the circuit
•

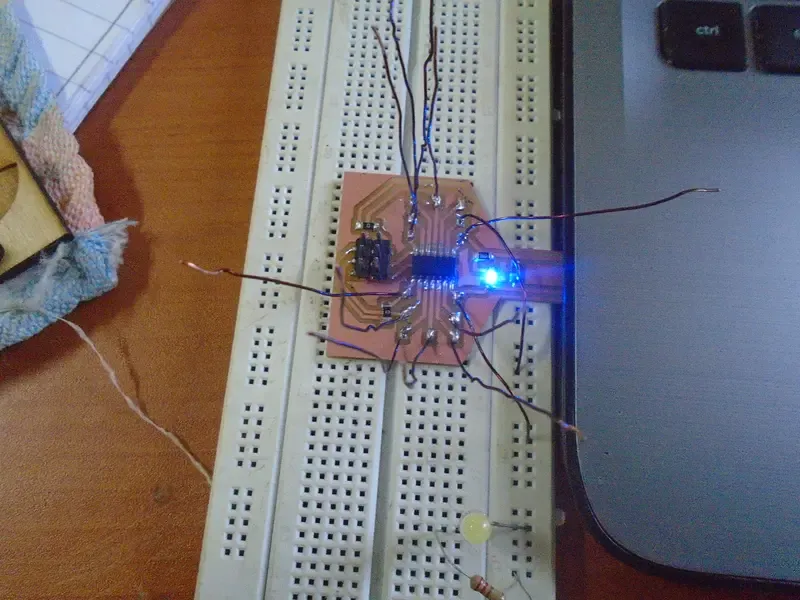

• adding wires to connect it to other devices
•

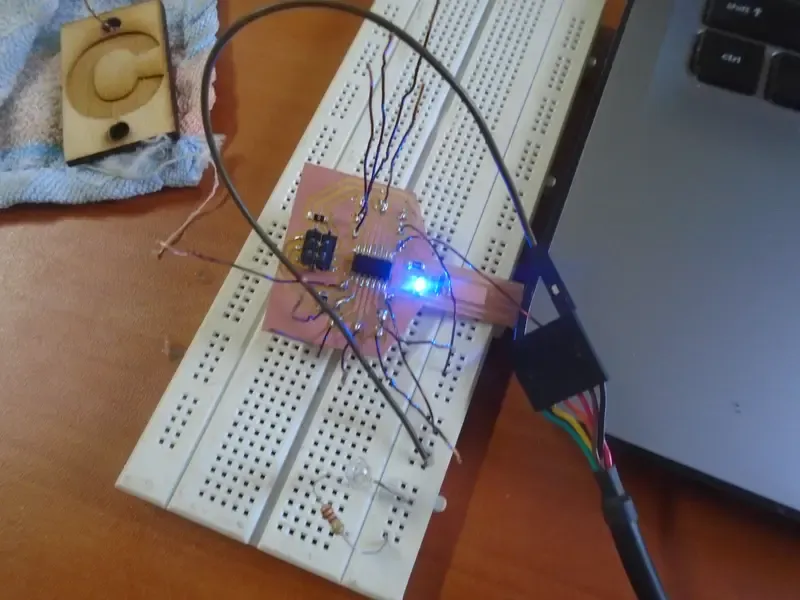

• try powering the board using ftdi
•
