Monofab SRM-20 Mill

Purpose

• This machine is capable of cutting a wide variety of materials including chemical wood, acrylic, and ABS
• it can be used in milling, casting or pcb production

Minimum knowledge to use machine

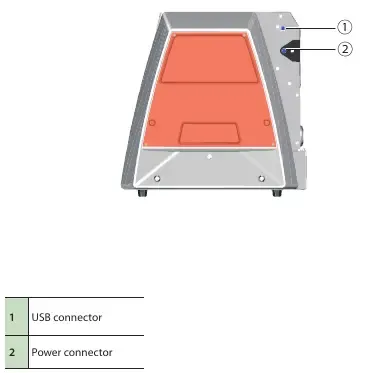

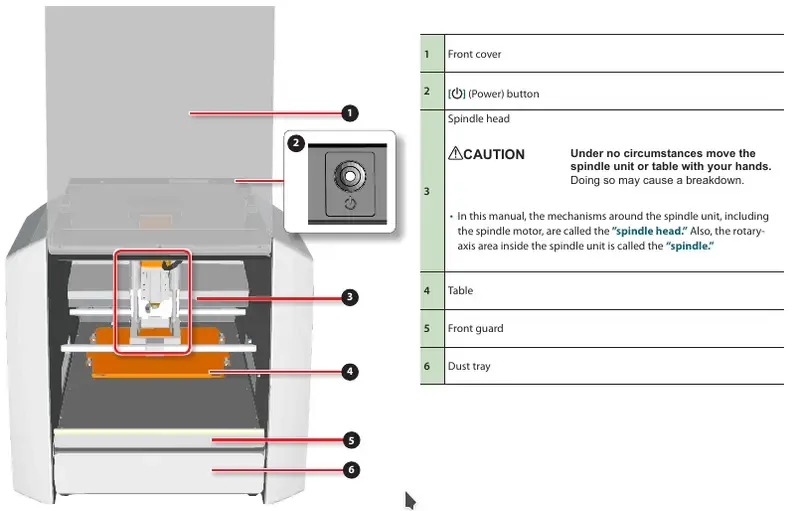

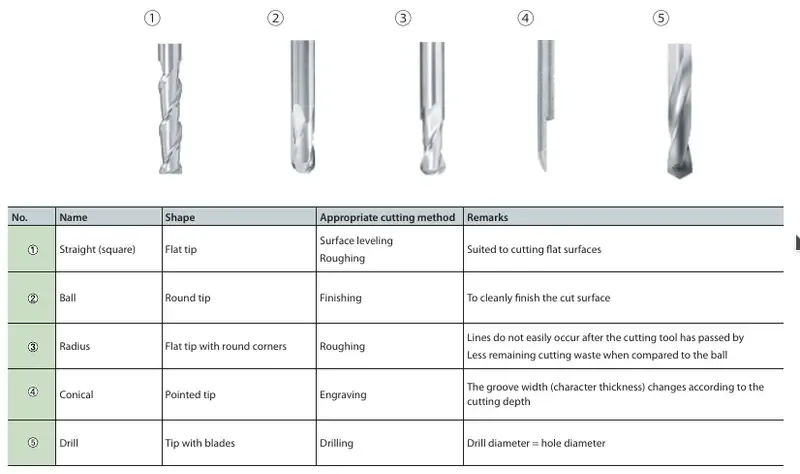

• cutting tools

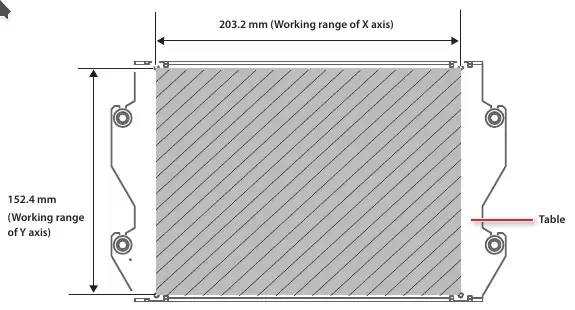

• cutting area x,y


• cutting area z


• softwares used

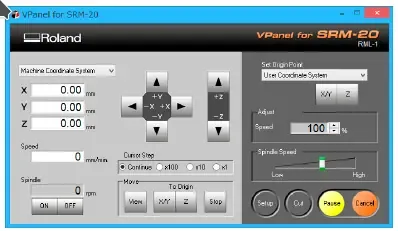

  • vpanel : to control the axis and start the job

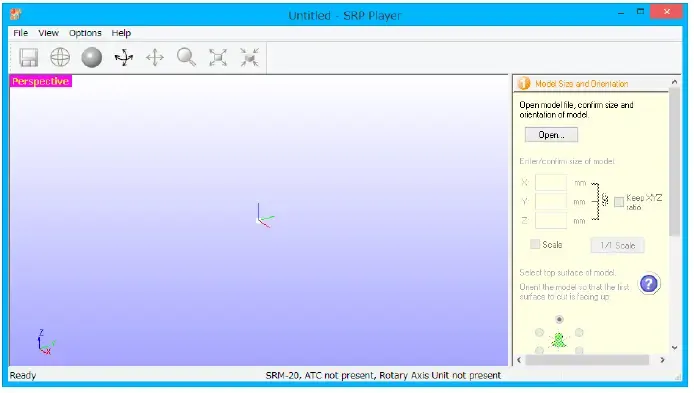

  • SRP Player : This is a CAM software that imports general-use 3D data, (such as IGES, DXF (3D), or STL), and lets you easily prepare tool paths and output them to the SRM-20.


  • Modela Player 4 : This is a CAM software that imports general-use 3D data, (such as IGES, DXF (3D), or STL), and lets you easily prepare tool paths and output them to the SRM-20.

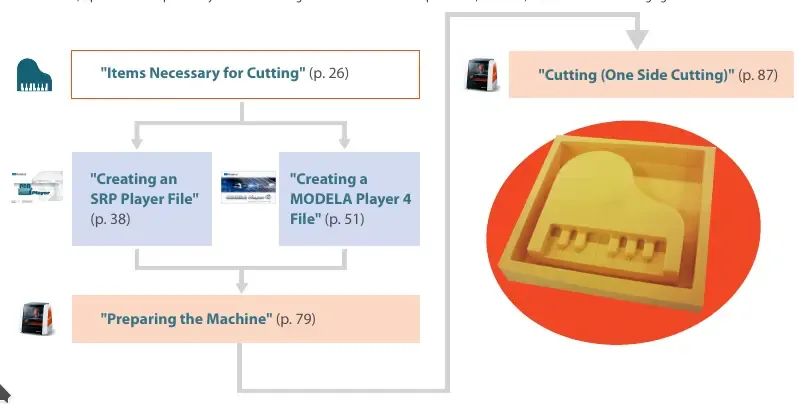

• The Flow of One Side Cutting


• Preparing the Machine

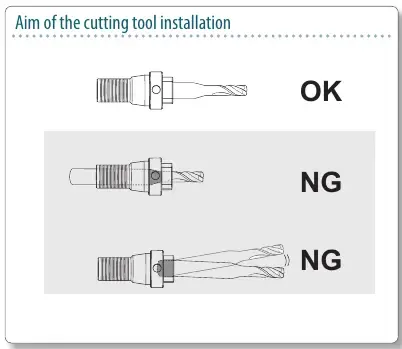

• attaching the cutting tool



• attach the material to the table

  • Mark the location that will be the origin point of the material.

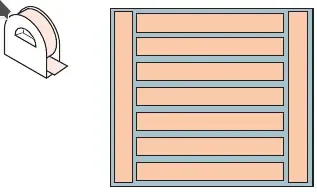

  • Stick double-stick tape on the material.


  • set the origin of the vpanel


• Loadable workpiece weight : 2 kg

• operating speed : 6 ~ 1800 mm/min

• maximum spindle rotation : 7,000 rpm

Materials

• Chemical wood
• Sanmodur
• ABS
• Modeling wax

Working time

• monday
• wednesday

Maintenance

•
•
•
•

Procedures

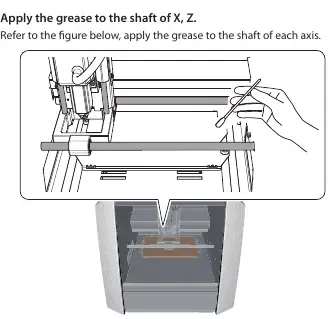

• lubricate and grease the axis and rail

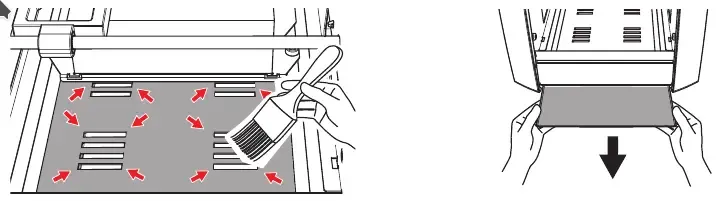

• clean the container under the plate
• make sure the layer above the plate is leveled
• suck the wasted wood, wax or cubber from the machine

Date

• Yearly maintenance
  • sunday 1\9\2019 hardware maintenance (cleaning, greasing)
  • monday 2\9\2019 software maintenance (installing O.S, softwares, mods, local server)
  • test the machine

advanced

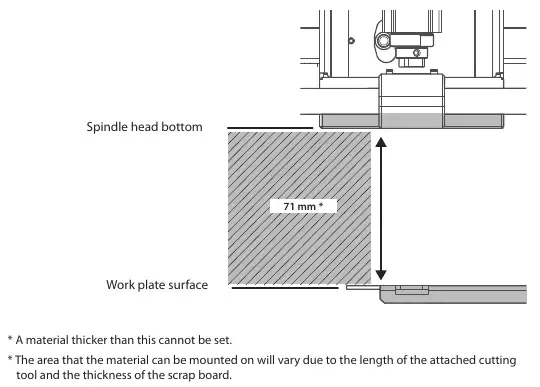

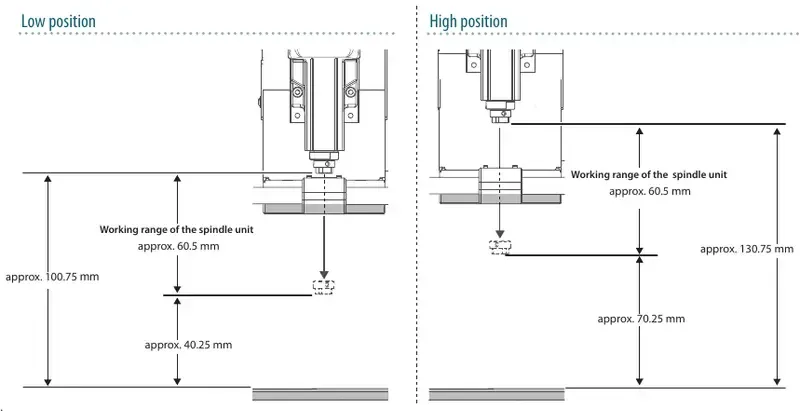

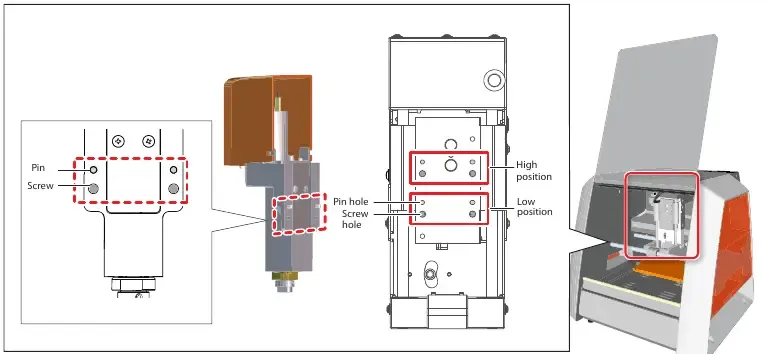

• Z Cutting Range by Changing the Position of the Spindle Unit
